Piper Seneca Intercooler Kit

Piper Seneca II & III - PA34-200T/PA-34-220T

Piper Seneca with Intercooler

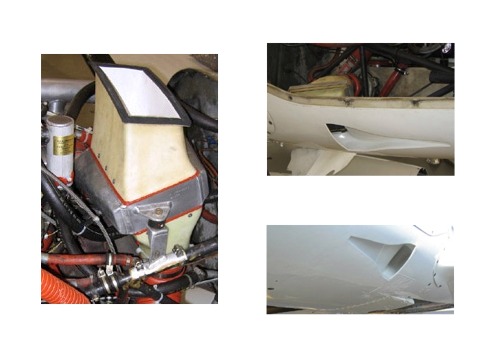

The Turboplus Piper Seneca II III intercooler systems provide ram air through their custom designed NACA ducts, for both intercooler and induction systems. One NACA duct directs ambient air through their custom designed airbox (with Auto Air Door) directly into the turbocharger.

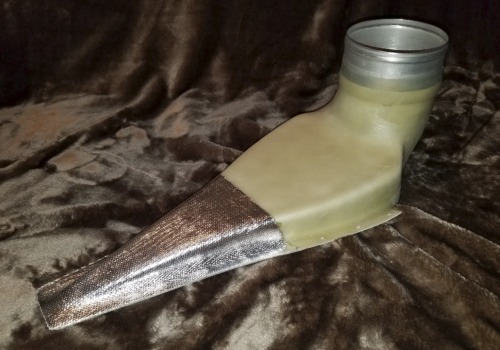

The Intercooler NACA duct directs ambient air through their custom designed plenum mounted to the intercooler assembly. The NACA ducts create no drag. Turboplus Aircraft Systems, Inc. is the only general aviation aftermarket intercooler kit manufacturer to offer a Five-Year warranty on their intercooler system.





Piper Seneca Intercooler Kit

Intercooler Benefits

  • Up to 83°C/150°F Induction Air Temp. Drop
  • Extended Engine Life
  • Lower Maintenance Costs
  • Full Take-off Power on HOT Days/High Altitude Airports
  • FUEL SAVINGS up to 15%
  • Extended Range
  • Same H.P. with Less M.P.
  • Cooler CHT and Oil Temps Allows Engine Operation Farther from Point of Detonation
  • Engine Critical Altitude Increased






Intercooler Kit

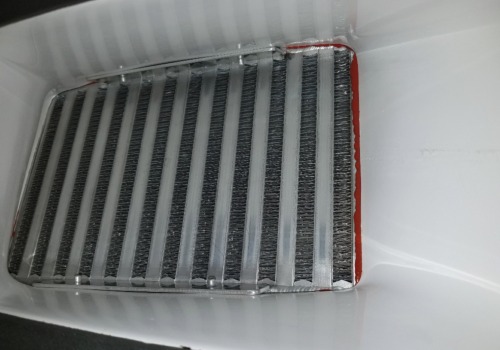

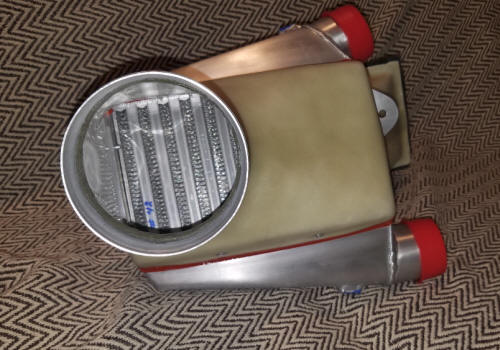

  • Intercooler with Charge Air Cooling Plenums

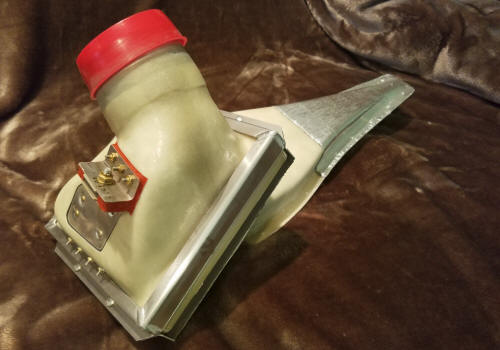

  • New Turboplus Induction System with Automatic Alternate Air Door
  • NACA Ducts & Templates
  • Engine Intercooler Gauge-3 Temps:
    1. Compressor Discharge Temp.
    2. Charge Air Temp.
    3. Differential Temp.

  • Certified Hardware
  • Custom Intercooler Hoses
  • Turboplus and FAA Documents

Price: $12,695.00



Labor Hours

Estimated 50 Hours Installation

Printable Product Flyer

STC:

SA4180NM - Piper Seneca II & III











Piper Seneca Pressurized Magneto Kit

Magneto Kit Benefits:

  • Reduces High Altitude Misfiring
  • Reduces Possible Engine damage due to Misfiring







Kit Includes:

  • Certified Hardware
  • New Hose Assemblies
  • Fuel Filter
  • Magneto Fittings
  • Hydraulic Fittings





Price: $1695.00

  • Estimated 4 hours installation
  • Part Number:
    4000 (TSIO-360 Series)

STC: SE4177NM - TSIO-360 Series
Installation of Pressurized Magneto System




Piper Seneca 220HP Conversion Kit

Convert your Continental TSIO-360-EB, LTSIO-360-EB Engine from 200HP to 220HP Operating Limits.

180 Pound Gross Weight Increase!



Note: 1800 Hour Engines Only

Please review STC: SA1797NM for Increased Maximum Weights

STC: SE1796NM Conversion of TSIO-360EB and LTSIO-360-EB engines to the operating limits of the KB engine.   P-Mag and KB Fuel System required

STC: SA1797NM PA34-220T, Installation of Continental TSI0-360-KB and LTSIO-360-KB engine. No intercooler or P-Mag required.










KB Fuel Kit Includes: (overhauled)

  • New Fuel Injectors
  • New Fuel Pump
  • New Throttle Body
  • New Flow Divider
    (Above parts are on exchange basis. Core charge applies.)



















Price: $3600.00

Includes: 220HP Upgrade STC’s ONLY
Requires: KB Fuel System & Turboplus Pressurized Magneto Kit
Intercooler Kit NOT Included or Required

Price $1800.00

Includes: 220HP Upgrade STC’s
Requires: KB Fuel System, Turboplus Pressurized Magneto Kit &
Turboplus Intercooler Kit Purchase

Price: $5000.00

Includes: KB Engine Installation STC, Seneca II
Intercooler Kit NOT Required

Price: $2500.00

Includes: KB Engine Installation STC, Seneca II
Requires: Turboplus Intercooler Kit Purchase

Before any aircraft is accepted for a Turboplus intercooler installation an extensive “flight test" is performed to determine and record the critical engine altitude, oil and cylinder head temperatures and fuel flows at given power settings. Any discrepancies that might affect the efficiency of operation of the Turboplus intercooler are noted. After installation, another “flight test” ensures that engine and aircraft performance adhere to Turboplus Aircraft Systems, Inc. high standards. Post modification flight test data provides a direct "Before and After" comparison of the dramatic improvement in aircraft performance and engine operation.
